<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: Microsoft 365 Mailbox Sensor

The Microsoft 365 Mailbox sensor monitors a Microsoft 365 mailbox.

i_betaThis sensor is in beta status. The operating methods and the available settings can change at any time. Do not expect that all functions work properly, or that this sensor works as expected at all. Be aware that this sensor can be removed from PRTG at any time.

Microsoft 365 Mailbox Sensor

Microsoft 365 Mailbox Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: Microsoft 365 Mailbox
  • French: Microsoft 365 Mailbox
  • German: Microsoft 365 Mailbox
  • Japanese: Microsoft 365 Mailbox
  • Portuguese: Microsoft 365 Mailbox
  • Russian: Microsoft 365 Mailbox
  • Simplified Chinese: Microsoft 365 Mailbox
  • Spanish: Microsoft 365 Mailbox

Remarks

Limitations and Known Issues

  • This sensor currently only monitors the Inbox folder of a Microsoft 365 mailbox.
  • This sensor currently does not support reauthorization. If you change OAuth 2.0 settings in Microsoft Azure that require a reauthorization, you must add the sensor anew.
  • To use this sensor, add it to a device that inherits the credentials for Microsoft 365 from a parent object. Alternatively, create a device without credentials, open the device settings, enter the credentials for Microsoft 365, and click Save. If you want to add the sensor to an existing device, open the device settings and save the settings without changes again. We will improve the usability with the next PRTG version.

Detailed Requirements

Requirement

Description

Enabled Beta Sensors experimental feature

This sensor requires that the Beta Sensors experimental feature of PRTG is enabled.

i_square_cyanFor more information, see the Knowledge Base: What are beta sensors and how can I use them?

Secure HTTPS server

This sensor requires that the PRTG web server accepts incoming HTTPS requests.

i_square_cyanFor more information, see section PRTG Web Server in chapter User Interface.

Permission for the APIs

This sensor requires the following delegated permissions to query data from Microsoft Graph:

  • Microsoft Graph / User.Read
  • Microsoft Graph / Mail.Read
  • Microsoft Graph / Mail.Read.Shared (optional)
  • Microsoft Graph / offline_access

i_square_cyanFor more information, see the Knowledge Base: How do I obtain credentials and set permissions for the Microsoft 365 Mailbox sensor?

Redirect URIs

This sensor requires that you provide the DNS name or an IP address of your PRTG web server as redirect URI in the Microsoft Azure Portal according the following pattern: https://<yourprtgserver>/ms365.htm

i_round_blueMicrosoft Azure only accepts redirect URIs that start with HTTPS or http://localhost.

i_round_blueIf you access the PRTG web interface via localhost, you can provide http://localhost/ms365.htm as redirect URI.

i_square_cyanFor more information, see the Knowledge Base: How do I obtain credentials and set permissions for the Microsoft 365 Mailbox sensor?

Add Sensor

The Add Sensor dialog appears when you manually add a new sensor to a device. It only shows the settings that are required to create the sensor. You can change nearly all settings on the sensor's Settings tab after creation.

Basic Sensor Settings

Click the Settings tab of a sensor to change its settings.

Basic Sensor Settings

Basic Sensor Settings

Setting

Description

Sensor Name

Enter a name to identify the sensor.

Parent Tags

Shows tags that the sensor inherits from its parent device, parent group, and parent probe.

i_round_blueThis setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

i_round_blueIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

i_round_blueFor performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • mailsensor
  • microsoft365
  • microsoft365sensor

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority (i_priority_1) to the highest priority (i_priority_5).

i_round_blueUsually, a sensor connects to the IP Address/DNS Name of the parent device. See the device settings for details. For some sensors, you can explicitly define the monitoring target in the sensor settings.

Microsoft OAuth 2.0 Specific

Setting

Description

Authorization

i_round_redThe OAuth 2.0 authorization renew feature is currently under development. If you change OAuth 2.0 settings in Microsoft Azure that require a reauthorization, you must add the sensor anew.

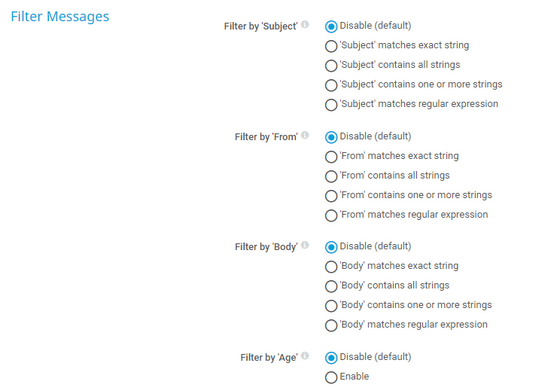

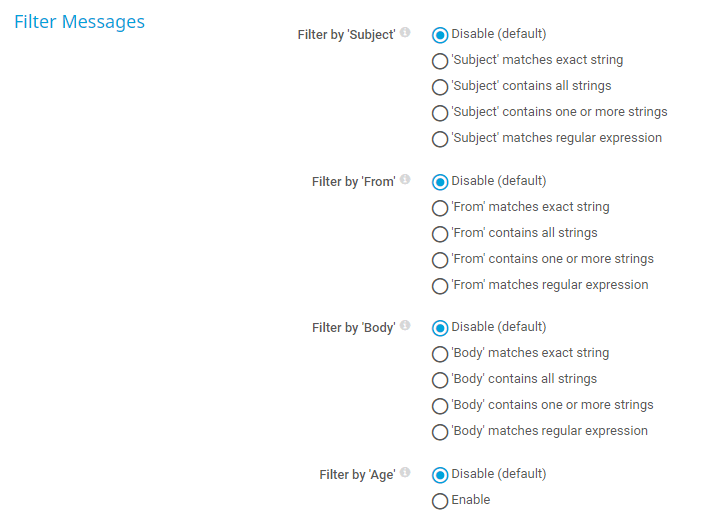

Microsoft 365 Mailbox Settings

Microsoft 365 Mailbox Settings

Microsoft 365 Mailbox Settings

Setting

Description

Filter by 'Subject'

Select if you want to filter the emails by their subject. Choose between:

  • Disable (default): Do not use Filter by 'Subject'.
  • Equals: Filter emails whose subject equals the defined string.
  • Contains: Filter emails whose subject contains the defined string.

i_round_blueIf you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body', the sensor creates three additional channels that monitor the emails that match your filters.

i_round_blueIf you disable the filters, the additional channels remain, but do not receive data anymore.

Search for

Enter a string that you want to use for Filter by 'Subject'.

i_round_blueIf you select Contains above, you can also enter a comma-separated list of strings to search for items that contain more than one string. For example, if you enter backup and failed, the sensor counts all items that contain both strings.

Filter by 'From'

Select if you want to filter the 'From' field of the emails. Choose between:

  • Disable (default): Do not use Filter by 'From'.
  • Equals: Filter emails whose 'From' field equals the defined string.
  • Contains: Filter emails whose 'From' field contains the defined string.

i_round_blueIf you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body', the sensor creates three additional channels that monitor the emails that match your filters.

i_round_blueIf you disable the filters, the additional channels remain, but do not receive data anymore.

Search for

Enter a string that you want to use for Filter by 'From'.

i_round_blueIf you select Contains above, you can also enter a comma-separated list of strings to search for items that contain more than one string. For example, if you enter backup and failed, the sensor counts all items that contain both strings.

Filter by 'Body'

Select if you want to filter the emails by their body. Choose between:

  • Disable (default): Do not use Filter by 'Body'.
  • Equals: Filter emails whose body equals the defined string.
  • Contains: Filter emails whose body contains the defined string.

i_round_blueIf you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body', the sensor creates three additional channels that monitor the emails that match your filters.

i_round_blueIf you disable the filters, the additional channels remain, but do not receive data anymore.

Search for

Enter a string that you want to use for Filter by 'Body'.

i_round_blueIf you select Contains above, you can also enter a comma-separated list of strings to search for items that contain more than one string. For example, if you enter backup and failed, the sensor counts all items that contain both strings.

Filter by 'Age'

Select if you want to filter the emails by their age. The filter will be applied to all channels of the sensor.

Maximum Age (Minutes)

Enter the maximum age in minutes. The sensor only processes emails that are younger. Enter an integer.

Shared Mailbox User Principal Name

Enter the user principal name of a shared mailbox to which the authenticated user account has access. Leave the field empty to use the mailbox of the authenticated user account.

Sensor Display

Sensor Display

Sensor Display

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you enable Stack channels on top of each other as Graph Type. Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Debug Options

Debug Options

Debug Options

Setting

Description

Result Handling

Define what PRTG does with the sensor result:

  • Discard result: Do not store the sensor result.
  • Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file name is Result of Sensor [ID].log. This setting is for debugging purposes. PRTG overwrites this file with each scanning interval.

i_podThis option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

i_round_blueIn a cluster, PRTG stores the result in the PRTG data directory of the master node.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Scanning Interval

i_round_blueThe minimum scanning interval of this sensor is 30 seconds.

i_round_blueThe recommended scanning interval of this sensor is 10 minutes.

Scanning Interval

Scanning Interval

i_square_cyanFor more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

i_round_blueYou cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

Schedules, Dependencies, and Maintenance Window

i_square_cyanFor more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window.

Access Rights

Access Rights

Access Rights

i_square_cyanFor more information, see section Root Group Settings, section Access Rights.

Channel Unit Configuration

i_round_blueWhich channel units are available depends on the sensor type and the available parameters. If no configurable channels are available, this field shows No configurable channels.

Channel Unit Configuration

Channel Unit Configuration

i_square_cyanFor more information, see section Root Group Settings, section Channel Unit Configuration.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel

Description

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status in percent.

Matching Emails

The number of emails that match the defined filters

i_round_blueThis channel will only be created if you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body'.

Newest Email

The age of the newest email

Newest Matching Email

The age of the newest email that matches the defined filters

i_round_blueThis channel will only be created if you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body'.

Number of Emails

The number of emails

i_round_blueThis channel is the primary channel by default.

Oldest Email

The age of the oldest email

Oldest Matching Email

The age of the oldest email that matches the defined filters

i_round_blueThis channel will only be created if you enable Filter by 'Subject', Filter by 'From', or Filter by 'Body'.
