<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: Geo Maps

With the Geo Maps feature, you can visualize geographical information about monitored objects that are located at different sites worldwide on one page. You can display the location of probes, groups, and devices in a geographical map on the Overview tab of an object or in Maps.

i_square_cyanFor more information about the Overview tab, see the Knowledge Base: What options do I have to review my monitoring data in detail?

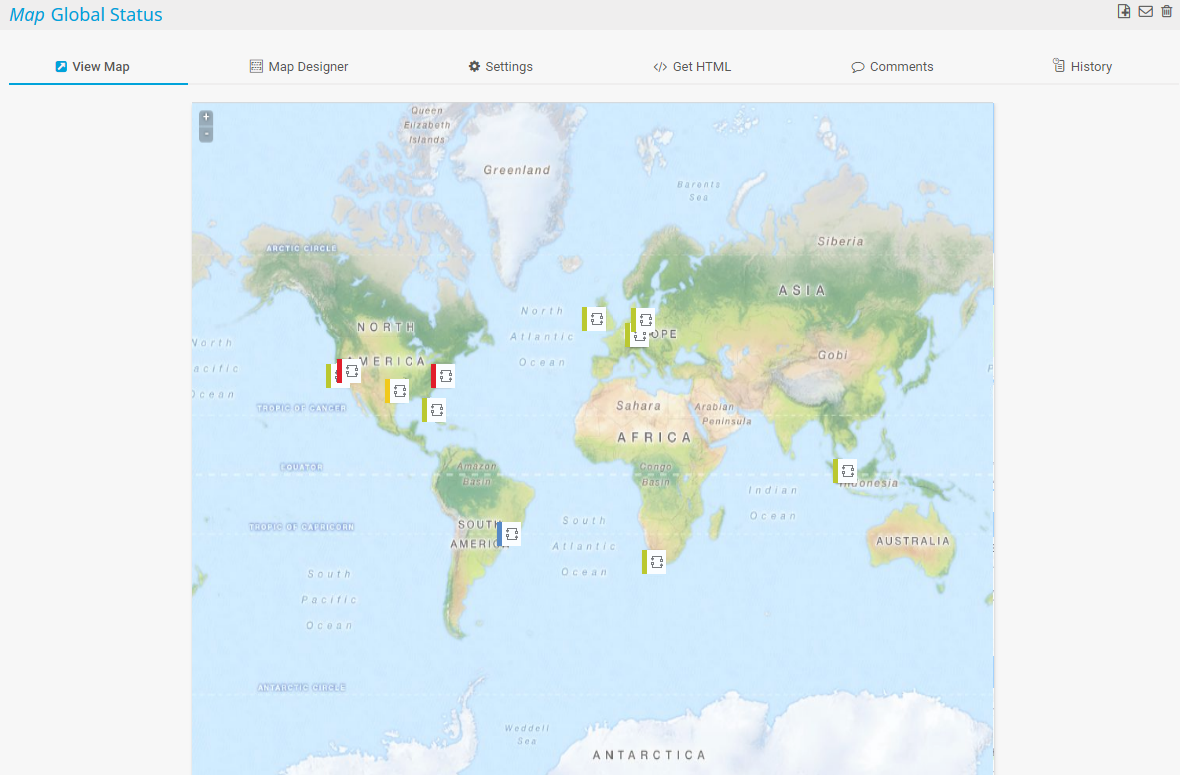

Global Status of a Network in a Geographical Map

Global Status of a Network in a Geographical Map

Prerequisites

To use geographical maps and view them in the PRTG web interface, make sure that your PRTG core server has access to the internet to obtain map tiles. If a proxy is mandatory in your network, configure the according proxy settings.

i_square_cyanFor more information, see section Core & Probes.

i_square_cyanFor more information about map tile server domains, see the Knowledge Base: Which domains and ports does the Geo Maps feature use?

Geo Maps Concepts

The Geo Maps feature works as follows:

Concept

Description

Location information

Enter Location (for Geo Maps) information, for example, a city name, an address, or coordinates, for each probe, group, or device in the object's settings. The PRTG core server resolves your location specification to global geographical coordinates with the help of an external map service provider. PRTG uses this information to query a geographical map that shows your objects.

i_round_blueYou can use the first line of the location information field to label your locations.

Geo Maps settings

Select a map service provider and the type of map that you want to view in the User Interface settings in section Geo Maps. You can also disable the integration of Geo Maps there.

PRTG connects to the specified maps service provider to get map tiles. These map tiles provide the geographical background map. PRTG then marks defined locations with a corresponding location marker that consists of an object icon and the object's status color.

Object Marker for a Group

Object Marker for a Group

Geographical maps display

You can display geographical maps in the device tree on an object's Overview tab. PRTG automatically adjusts the zoom level of a geographical map so that it can show all locations of a selected object.

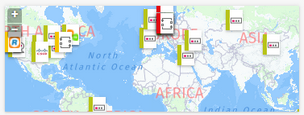

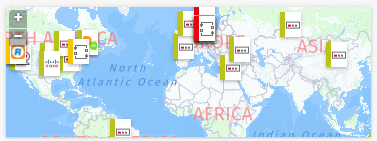

Geographical Map on an Object's Overview Tab

Geographical Map on an Object's Overview Tab

You can also add geographical maps to Maps. To do so, open the Map Designer and click Geo Maps in the properties menu on the right.

Location Labels

You can define your own labels for locations of objects. To do so, enter the desired label in the first line of the Location (for Geo Maps) field in an object's settings and provide the geo coordinates of the location in the second line. The object appears with the defined label in geographical maps. It is also possible to define the same label for different locations as long as the coordinates differ from each other.

For example, enter the following information:

Big Apple
40.712778,-74.005833

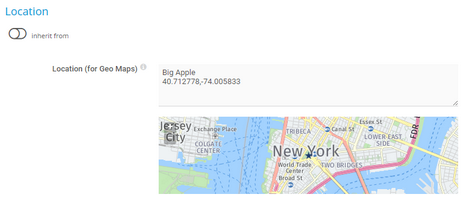

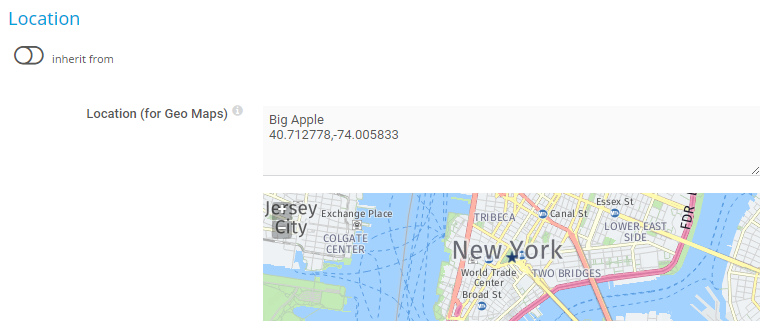

Location New York with Geo Coordinates and Label Big Apple

Location New York with Geo Coordinates and Label Big Apple

The location New York appears on the geographical map with the label Big Apple:

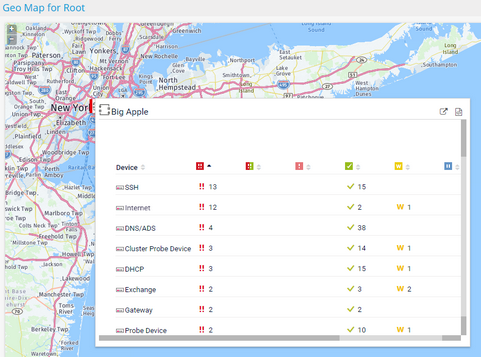

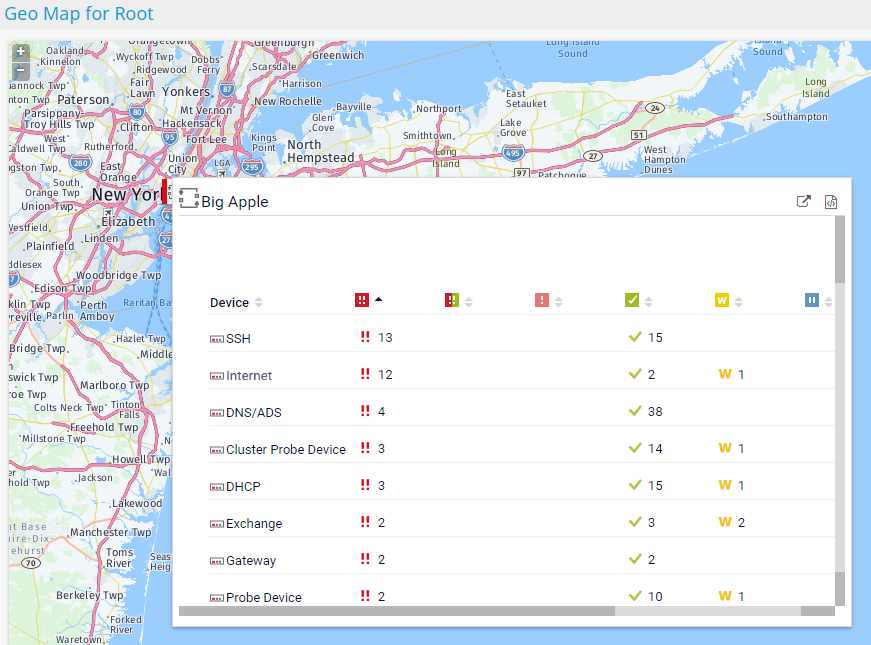

Location New York with Label Big Apple

Location New York with Label Big Apple

Status Color of Location Markers

The location markers use different colors to show the overall monitoring status at this location. In the following table, you can see all possible monitoring states sorted by priority:

Object Marker

Color

Location Status

Meaning

i_object_marker_red

Red

Down

At least one sensor at this location shows the Down status. Hover over the location marker to view the total number of alarms at this location.

i_object_marker_pink

Light Pink

Down (Acknowledged)

At least one sensor at this location shows the Down status and a user acknowledged this status via the Acknowledge Alarm feature.

The Down states of all sensors at this location must be acknowledged. If at least one Down status is not acknowledged, this location shows the Down status.

i_object_marker_yellow

Yellow

Warning

At least one sensor at this location shows the Warning status. There is no sensor in the Down or Down (Acknowledged) status at this location.

i_object_marker_orange

Orange

Unusual

At least one sensor at this location shows the Unusual status. There is no sensor in the Down, Down (Acknowledged), or Warning status at this location.

i_object_marker_green

Green

Up

All sensors at this location are in the Up status. There is no sensor in the Down, Down (Acknowledged), Warning, Paused, or Unusual status at this location.

i_object_marker_blue

Blue

Paused

All sensors at this location show the Paused status. There is no sensor in the Down, Down (Acknowledged), Warning, Unusual, or Up status at this location.

i_object_marker_gray

Grey

Unknown

All sensors at this location show the Unknown status. There is no sensor in the Down, Down (Acknowledged), Warning, Unusual, Paused, or Up status at this location.

i_square_cyanFor more information, see section Sensor States.
